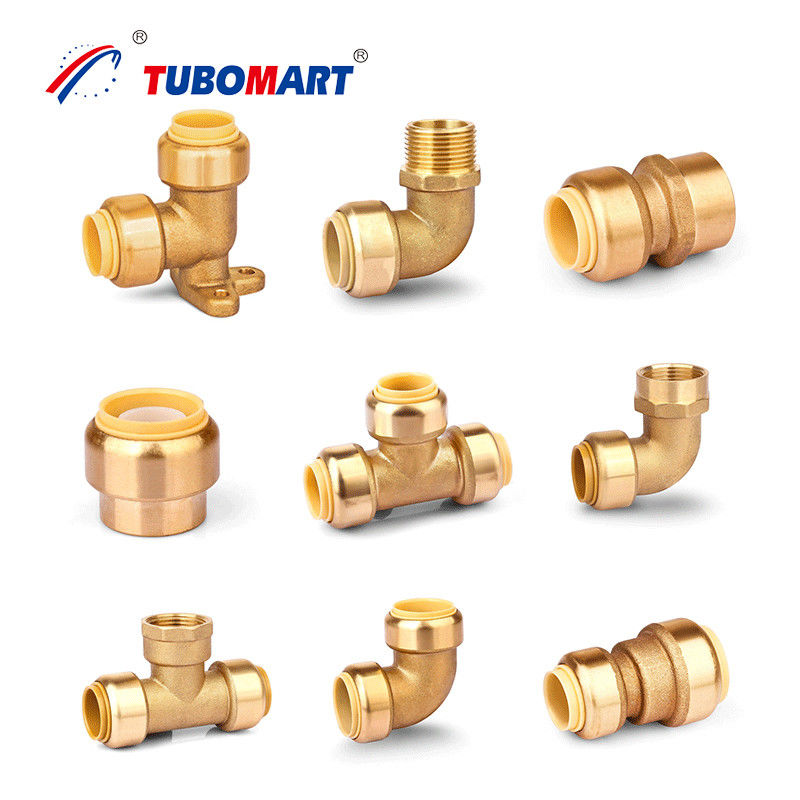

Brass Plumbing Elbow Fittings Lead free Quick Connect Pex Push Fit Fittings

Product Details

Place of Origin: china

Brand Name: Tubomart

Certification: NSF/CSA/ANSI/ASSE/CAN CERTIFICATES

Model Number: 370 Series

Payment & Shipping Terms

Minimum Order Quantity: 5000pcs

Price: to be Negotiate

Packaging Details: poly bag, small box, carton(according to customers' requirements)

Delivery Time: 45 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

Brass Plumbing Elbow Fittings

,

Plumbing Elbow Fittings Lead Free

,

Quick Connect Pex Push Fit Fittings

Application:
Potable Water
Connection Type:
Push-to-Connect
Material:
Brass
Outlet Type:
Female Threaded
Product Name:
Pex Push Fittings
Color:
Yellow Brass Color, Or Nickel Plated, Or Chrome Plated.
Application:
Potable Water
Connection Type:
Push-to-Connect
Material:
Brass
Outlet Type:
Female Threaded
Product Name:
Pex Push Fittings
Color:
Yellow Brass Color, Or Nickel Plated, Or Chrome Plated.
Brass Plumbing Elbow Fittings Lead free Quick Connect Pex Push Fit Fittings

Brass Plumbing Fitting Elbow Easy Use Leadfree Pex System Quick Connect Push Fit Fitting



Advantage:

1.Suitable for underground
2.The push fit fittings are dependable and secure even when hidden inside finished walls and ceilings
3.Compatible with Copper, PEX, PEX AL PEX, CPVC, PB
4.The copper tube doesn’t need to be welded anymore
5.Quick assembly push fit mechanism
6.Simple disconnect the pipe
7.360° rotatable
8.Lead Free
9.NSF/CSA/ANSI/ASSE/CAN CERTIFICATES



Product type push fit fitting brass fitting
Product Series 370 Series
Color Yellow brass color, or Nickel plated, or Chrome plated.
Materials Made of high quality brass
Produce According to drawings, samples and accurate size.
Machine and Technique Precision CNC lathe, punch, friction, press, milling, machine forging, stamping etc.
Features 1.Artistic design with high-pressure and corrosion resistance
2.Prevent liquid leaking
Applications Water pipes, gas pipes, shower hose, air conditioner, refrigerator, fire valve, garden hose, high-level hygienic equipment,



Brass Plumbing Elbow Fittings Lead free Quick Connect Pex Push Fit Fittings 0

Product Description
Simplify your plumbing projects with the brass push-to-connect 90-degree reducing elbow. Composed of DZR forged brass, this plumbing elbow is corrosion free and is perfect for making a connection between two different-sized pipes quickly and easily. This brass plumbing fitting features a push-to-connect design which is ideal for working in tight spaces and can be installed in wet lines. These push-to-connect 90-degree reducing elbows are easy to install, compatible with PEX, PE-RT, CPVC, SDR-9 HDPE, and copper pipe fixtures, and do not require any special tools, glue, crimping, or soldering for installation. Approved for underground and behind-the-wall applications with no access panels, these push 90-degree reducing elbows are suitable for commercial repairs or home improvement projects. Tubomart brass elbows can withstand 200 degrees F and 200 PSI. 25-year warranty.



From the Manufacturer
It's the easiest way to join copper, CPVC or PEX pipe in any combination - with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool. So fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.



FEATURES AND BENEFITS
Industrial grade quality

With push fit fittings, the quality of the internal components is just as important as the fitting body. Push fit fittings use high quality materials like the stainless steel gripper ring for high corrosion resistance. In addition, the EPDM O-ring is long lasting and lubricated with a silicone grease.

Variety of fittings
Push fit fittings come in a variety of fittings including the standard tees, elbows caps and couplings. Elbows and adapters are available with either a FPT or MPT connection. There are two types of repair couplings that can be used to fix a burst pipe. The pipe can be cut before or after the damaged pipe and replaced with either a solid coupling or a flexible braided coupling.

Brass Plumbing Elbow Fittings Lead free Quick Connect Pex Push Fit Fittings 1

Easy installation
Push fit fittings are simple to install and easily connect to copper, CPVC and PEX piping in any combination. Push fit fittings are also equipped with connections that swivel meaning that they can be rotated after assembly for easier installation and pipe alignment in tight spaces. Due to their unique design, no soldering, crimping or solvent welding is necessary eliminating the need for specialty tools. Plus, using push fit fittings can help you save time and money. With push fit fittings, you can complete your plumbing and heating projects in 1/12th to 1/20th of the time compared to conventional soldered technology.

Reusable
Push fit fittings are reusable. If needed, it’s easy to disconnect with push fit fittings. All you need is a special disconnect tool (plastic disassembly clip) to disengage the stainless steel gripper ring and release the tube. Fittings can be reused for testing purposes but any fitting used repeatedly for testing should not be used in a permanent installation.

High flow rates
Take advantage of high flow rates with push fit fittings. Enjoy full fluid flow without stiffener inserts. When using the push fit fittings with copper tubing, the plastic stiffener that's used for PEX and CPVC piping can be removed. Without the stiffener in the fitting, the fitting will allow full flow.



Applications

push-to-connect transition fittings are more efficient and more reliable than traditional pipe transition methods, such as threaded adapters. They also come in a range of different end connections, including PVC and polybutylene.
Push fit fittings are ideal for use in potable water, plumbing, water heaters and hydronic heating systems. They can be used in both new residential and commercial construction. They can also be used in all new plumbing and dry repairs of existing plumbing. However, they are excellent for wet repairs where a system is hard to drain with no drying time required.
Push fit fittings are also great to use in hazardous locations. Since no heat or flame is required for installation, push fit fittings work well when doing repairs with potential for fire. For example, they are a good choice when insulation is present.
They are approved to be used underground and behind walls with or without access panels.
